DB101S 1.0 Ampere Surface Mount Glass Passivated Bridge Rectifier

DB101S Description

DB101S thru DB107S ® DB101S thru DB107S Pb Free Plating Product Pb 1.0 Ampere Surface Mount Glass Passivated Bridge Rectifier .

DB101S Features

* Glass passivated chip junction
* Low forward voltage drop
* High surge overload rating of 50 A peak
* Ideal for printed circuit board DB-S/DF-S Unit : inch (mm) .060(1.524) .004(0.10) .011(0.28) .335(8.51) .316(8.05) .009(0.25) .255(6.5) .245(6.2) .410(10.4)

📥 Download Datasheet

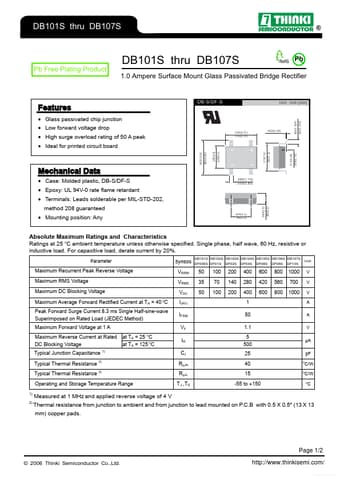

Preview of DB101S PDF
datasheet Preview Page 2

Datasheet Details

Part number
DB101S
Manufacturer
Thinki Semiconductor
File Size
643.99 KB
Datasheet
DB101S_ThinkiSemiconductor.pdf
Description
1.0 Ampere Surface Mount Glass Passivated Bridge Rectifier
