2CL3512, 2CL3509 Datasheet - Tianjin zhonghuan semiconductor

2CL3512 High Voltage Silicon Diodes

2CL3512 Features

* z IF（AV） z VRRM 350mA 9kV、12kV z High reliability Applications Rectification for high voltage power supply of magnetron in Micro wave oven and others Mechanical data z Case: Molded Plastic Body z Epoxy meets UL 94V-0 flammability rating z Terminals: Pure tin plated leads, solderable per J-STD-00

2CL3509-Tianjinzhonghuansemiconductor.pdf

This datasheet PDF includes multiple part numbers: 2CL3512, 2CL3509. Please refer to the document for exact specifications by model.

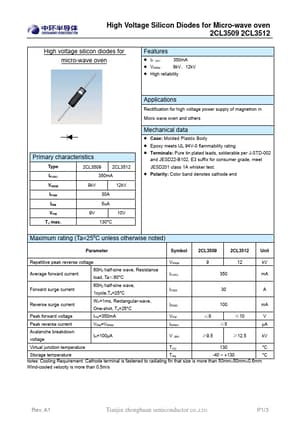

2CL3512 Datasheet Preview Page 2 2CL3512 Datasheet Preview Page 3

Datasheet Details

Part number:

2CL3512, 2CL3509

Manufacturer:

Tianjin zhonghuan semiconductor

File Size:

188.77 KB

Description:

High voltage silicon diodes.

Note:

This datasheet PDF includes multiple part numbers: 2CL3512, 2CL3509.
Please refer to the document for exact specifications by model.
