XCL210 50mA/200mA Inductor Built-in Step-Down DC/DC Converters

XCL210 Description

XCL210 Series ETR28009-005a 50mA/200mA Inductor Built-in Step-Down “micro DC/DC” Converters ☆Green Operation Compatible *GENERAL .
The XCL210 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.

XCL210 Features

* Input Voltage : 2.0V ~ 6.0V Output Voltage : 1.0V ~ 4.0V (±2.0%) Control Methods : PFM control Output Current : 200mA (Type A/C) 50mA (Type B/D) Supply Current : 0.5μA High Efficiency Function : 93% (VIN=3.6V,VOUT=3.0V/100μA) : UVLO Short Circuit Protection Capacitor CL Discharge(Type

XCL210 Applications

* that require an internally fixed output voltage from 1.0V to 4.0V in increments of 0.05V. During stand-by, all circuits are shutdown to reduce current consumption to as low as 0.1μA or less. With the built-in UVLO (Under Voltage Lock Out) function, the internal P-channel MOS driver transistor is for

📥 Download Datasheet

Preview of XCL210 PDF

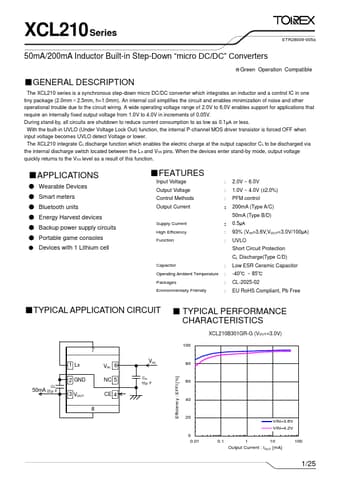

datasheet Preview Page 2 datasheet Preview Page 3
