XCL214, XCL213 Datasheet - Torex Semiconductor

XCL214 1.5A Inductor Built-in Step-Down Converters

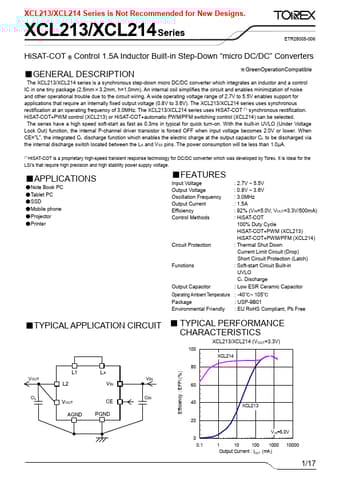

☆GreenOperationCompatible The XCL213/XCL214 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×3.2mm, h=1.0mm). An internal coil simplifies the circuit and enables minimization of noise and other operational trouble du.

XCL214 Features

* Input Voltage Output Voltage Oscillation Frequency Output Current Efficiency Control Methods Circuit Protection Functions Output Capacitor : 2.7V ~ 5.5V : 0.8V ~ 3.6V : 3.0MHz : 1.5A : 92% (VIN=5.0V, VOUT=3.3V/500mA) : HiSAT-COT 100% Duty Cycle HiSAT-COT+PWM (XCL213) HiSAT-COT+PWM/PFM (XCL214) : Th

XCL213-TorexSemiconductor.pdf

This datasheet PDF includes multiple part numbers: XCL214, XCL213. Please refer to the document for exact specifications by model.
XCL214 Datasheet Preview Page 2 XCL214 Datasheet Preview Page 3

Datasheet Details

Part number:

XCL214, XCL213

Manufacturer:

Torex Semiconductor

File Size:

1.01 MB

Description:

1.5a inductor built-in step-down converters.

Note:

This datasheet PDF includes multiple part numbers: XCL214, XCL213.
Please refer to the document for exact specifications by model.
