1SV307 Datasheet - Toshiba Semiconductor

1SV307_ToshibaSemiconductor.pdf

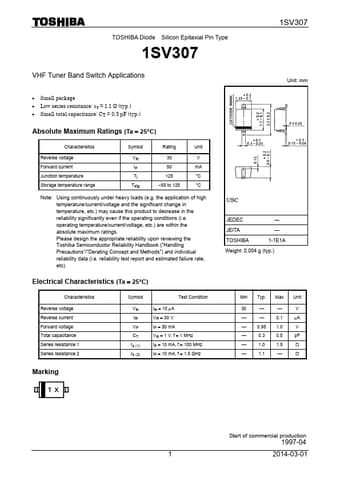

Preview of 1SV307 PDF
1SV307 Datasheet Preview Page 2 1SV307 Datasheet Preview Page 3

Datasheet Details

Part number:

1SV307

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

139.85 KB

Description:

Silicon diode.

1SV307, Silicon diode

TOSHIBA Diode Silicon Epitaxial Pin Type 1SV307 1SV307 VHF Tuner Band Switch Applications Small package Low series resistance: rs = 1.1 Ω (typ.) Small total capacitance: CT = 0.3 pF (typ.) Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Reverse voltage Forward current Junction temperature Storage temperature range VR 30 V IF 50 mA Tj 125 °C Tstg 55 to 125 °C Note: Using continuously under heavy loads (e.g.

the applica
