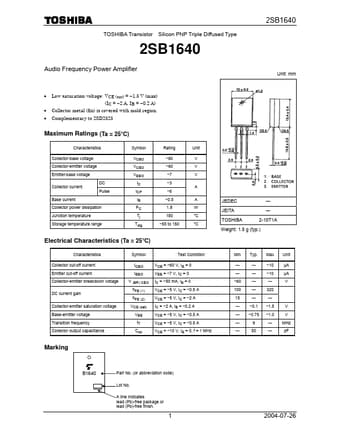

2SB1640
TOSHIBA Transistor Silicon PNP Triple Diffused Type
2SB1640
Audio Frequency Power Amplifier
Unit: mm • • • Low saturation voltage: VCE (sat) = −1.5 V (max) (IC = −2 A, IB = −0.2 A) Collector metal (fin) is covered with mold region. Complementary to 2SD2525
Maximum Ratings (Ta = 25°C)
Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range DC Pulse Symbol VCBO VCEO VEBO IC ICP IB PC Tj Tstg Rating −60 −60 −7 −3 −6 −0.5 1.8 150 −55 to 150 Unit V V V A A W °C °C
JEDEC JEITA TOSHIBA
― ― 2-10T1A
Weight: 1.5 g (typ.
