2SC5255 - NPN TRANSISTOR

2SC5255 Description

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC5255 2SC5255 VHF~UHF Band Low Noise Amplifier Applications Unit: mm * Low noise figure.

2SC5255 Applications

* Unit: mm
* Low noise figure: NF = 1.5dB (f = 2 GHz)
* High gain: Gain = 8.5dB (f = 2 GHz) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Stor

📥 Download Datasheet

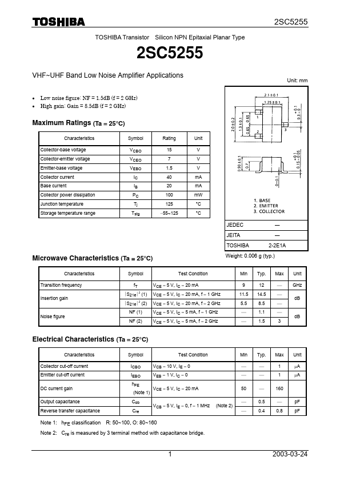

Preview of 2SC5255 PDF
datasheet Preview Page 2 datasheet Preview Page 3
