2SK2598 Datasheet - Toshiba Semiconductor

2SK2598, Silicon N-Channel MOSFET

2SK2598 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π *MOSV) 2SK2598 Chopper Regulator, DC *DC Converter and Motor Driv.

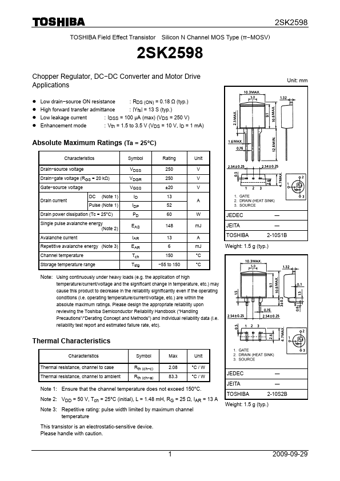

datasheet Preview Page 1 from Datasheet4u.com

2SK2598_ToshibaSemiconductor.pdf

2SK2598 Datasheet Preview — Preview of 2SK2598 PDF

Datasheet Details

Part number:

2SK2598

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

432.37 KB

Description:

Silicon N-Channel MOSFET

Features

* compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. TOSHIBA assumes no liability for damages or losses occurring as a result of noncompliance with applicable laws and regulations. 6 200

Applications

* Unit: mm z Low drain
* source ON resistance : RDS (ON) = 0.18 Ω (typ. ) z High forward transfer admittance : |Yfs| = 13 S (typ. ) z Low leakage current : IDSS = 100 μA (max) (VDS = 250 V) z Enhancement mode : Vth = 1.5 to 3.5 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°
