2SK2504 Datasheet - Rohm

2SK2504, Small switching Transistors

Transistors Small switching (100V, 5A) 2SK2504 F.

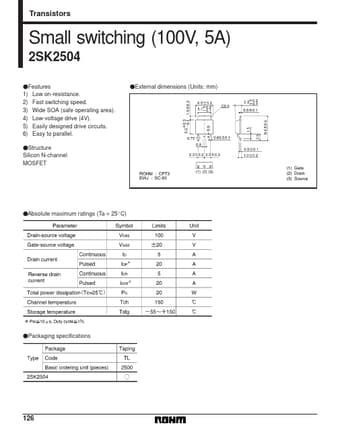

datasheet Preview Page 1 from Datasheet4u.com

2SK2504_Rohm.pdf

2SK2504 Datasheet Preview — Preview of 2SK2504 PDF

Datasheet Details

Part number:

2SK2504

Manufacturer:

ROHM ↗

File Size:

134.21 KB

Description:

Small switching Transistors

Features

* 1) Low on-resistance. 2) Fast switching speed. 3) Wide SOA (safe operating area). 4) Low-voltage drive (4V). 5) Easily designed drive circuits. 6) Easy to parallel. FStructure Silicon N-channel MOSFET FExternal dimensions (Units: mm) FAbsolute maximum ratings (Ta = 25_C) FPackaging specifications
