2SK2515 - SWITCHING N-CHANNEL POWER MOS FET

Product Overview

NEC

📥 Download Datasheet

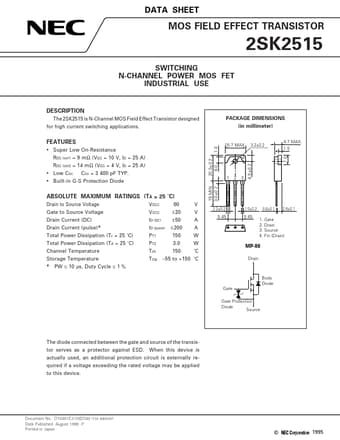

2SK2515 SWITCHING N-CHANNEL POWER MOS FET by NEC - Datasheet Preview — Datasheet preview – 2SK2515

Datasheet Details

Part number	2SK2515
Manufacturer	NEC
File Size	120.87 KB
Description	SWITCHING N-CHANNEL POWER MOS FET
Datasheet	2SK2515 Datasheet
Additional preview pages of the 2SK2515 datasheet.

Product details

Description

The 2SK2515 is N-Channel MOS Field Effect Transistor designed for high current switching applications.

Features

Super Low On-Resistance RDS (on)1 = 9 mΩ (VGS = 10 V, ID = 25 A) RDS (on)2 = 14 mΩ (VGS = 4 V, ID = 25 A) 1.0 15.7 MAX. 4 3.2±0.2 20.0±0.2 6.0.
Low Ciss Ciss = 3 400 pF TYP.
Built-in G-S Protection Diode.
