2SK2596 - Silicon N-Channel MOSFET

2SK2596 Description

2SK2596 Silicon N-Channel MOS FET UHF Power Amplifier .

2SK2596 Features

* High power output, High gain, High efficiency PG = 12.2 dB, Pout = 1.05 W, ηD = 45%min. (f = 836.5 MHz)
* Compact package capable of surface mounting REJ03G0207-0400 Rev.4.00 Nov 08, 2007 Outline RENESAS package code: PLZZ0004CA-A (Package name: UPAK R ) 3 1 1 2 3 4 2, 4 Note

📥 Download Datasheet

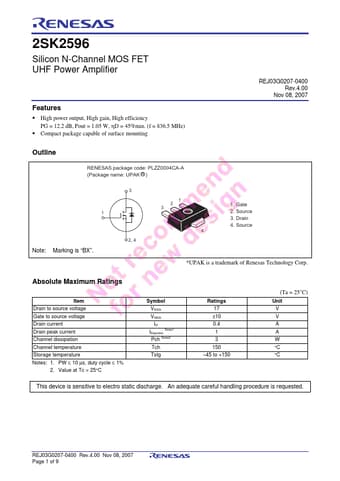

Preview of 2SK2596 PDF
datasheet Preview Page 2 datasheet Preview Page 3
