2SK2776 N-Channel MOSFET

2SK2776 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π *MOSV) 2SK2776 Chopper Regulator, DC *DC Converter and Motor Driv.

2SK2776_ToshibaSemiconductor.pdf

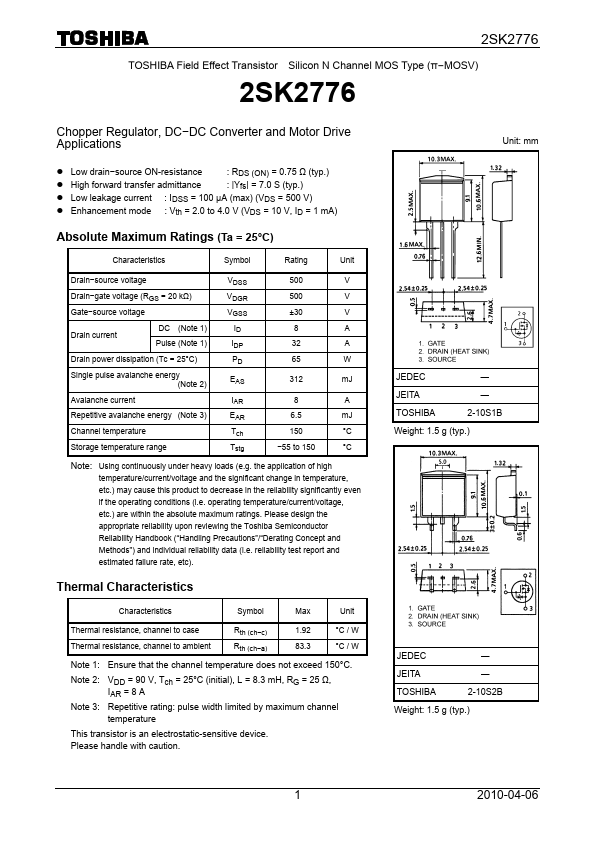

2SK2776 Datasheet Preview — Preview of 2SK2776 PDF

Datasheet Details

Part number:

2SK2776

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

438.26 KB

Description:

N-Channel MOSFET

Applications

* z Low drain
* source ON-resistance : RDS (ON) = 0.75 Ω (typ. ) z High forward transfer admittance : |Yfs| = 7.0 S (typ. ) z Low leakage current : IDSS = 100 μA (max) (VDS = 500 V) z Enhancement mode : Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Charact
