2SK2839 Datasheet - Toshiba Semiconductor

2SK2839 N-Channel MOSFET

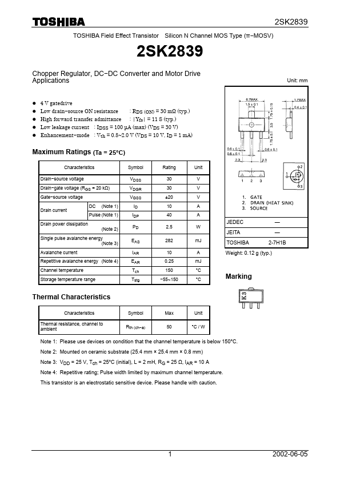

2SK2839 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π MOSV) 2SK2839 Chopper Regulator, DC DC Converter and Motor Drive Applications Unit: mm l 4 V gatedrive l Low drain source ON resistance : RDS (ON) = 30 mΩ (typ.) l High forward transfer admittance : |Yfs| = 11 S (typ.) l Low leakage current : IDSS = 100 µA (max) (VDS = 30 V) l Enhancement mode : Vth = 0.8~2.0 V (VDS = 10 V, ID = 1 mA) Maximum Ratings (Ta = 25°C) Characteristics Drain

2SK2839_ToshibaSemiconductor.pdf
