2SK3316 - N-Channel MOSFET

2SK3316 Description

2SK3316 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π *MOSV) 2SK3316 Switching Regulator Applications Fast reverse recovery ti.

2SK3316 Applications

* Fast reverse recovery time Low drain
* source ON resistance High forward transfer admittance Low leakage current Enhancement mode : trr = 60 ns (typ. ) : RDS (ON) = 1.6 Ω (typ. ) : |Yfs| = 3.8 S (typ. ) Unit: mm Built-in high-speed free-wheeling diode : IDSS = 100 µA (max) (VDS = 500 V) : Vth =

📥 Download Datasheet

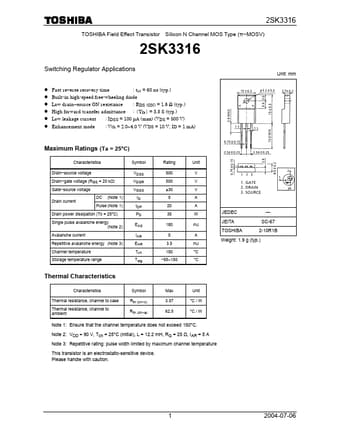

Preview of 2SK3316 PDF
datasheet Preview Page 2 datasheet Preview Page 3
