2SK3318 - Silicon N-channel power MOSFET

Product Overview

Panasonic Semiconductor

📥 Download Datasheet

2SK3318 Silicon N-channel power MOSFET by Panasonic Semiconductor - Datasheet Preview — Datasheet preview – 2SK3318

Datasheet Details

Part number	2SK3318
Manufacturer	Panasonic Semiconductor
File Size	96.60 KB
Description	Silicon N-channel power MOSFET
Datasheet	2SK3318 Datasheet

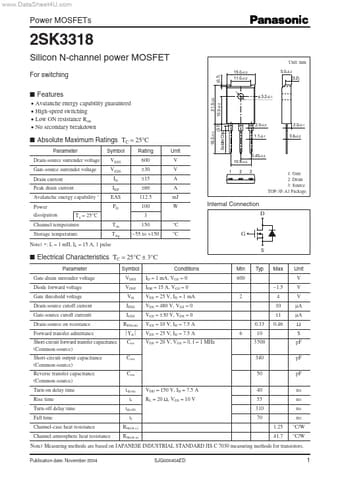

Additional preview pages of the 2SK3318 datasheet.

Product details

Features

br>.
Avalanche energy capability guaranteed.
High-speed switching.
Low ON resistance Ron.
No secondary breakdown 21.0±0.5 φ 3.2±0.1 (3.5) Solder Dip 15.0±0.2 2.0±0.2 1.1±0.1 2.0±0.1 0.6±0.2.
Absolute Maximum Ratings TC = 25°C Parameter Drain-source surrender voltage Gate-source surrender voltage Drain current Peak drain current Avalanche energy capability.
Power dissipation Ta = 25°C Tch Tstg Symbol VDSS VGSS ID IDP EAS PD Rating 600 ±30 ±15 ±60 11.
