2SK4014 N-Channel MOSFET

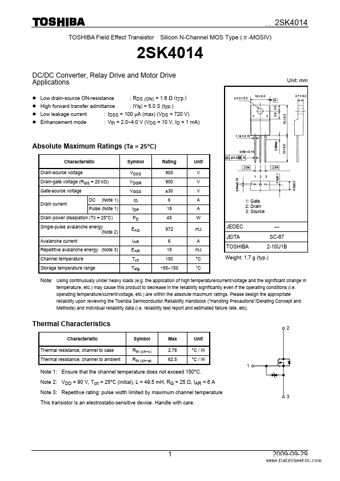

www.DataSheet4U.com 2SK4014 TOSHIBA Field Effect Transistor Silicon N-Channel MOS Type (π-MOSIV) 2SK4014 DC/DC Converter, Relay Drive and Motor Drive Applications z Low drain-source ON-resistance z High forward transfer admittance z Low leakage current z Enhancement mode : RDS (ON) = 1.6 Ω (typ.) : |Yfs| = 5.0 S (typ.) Unit: mm : IDSS = 100 µA (max) (VDS = 720 V) : Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Characteristic Drain-source voltage Drain-gate vol.

2SK4014 Features

* roduct is neither intended nor warranted for use in equipment or systems that require extraordinarily high levels of quality and/or reliability and/or a malfunction or failure of which may cause loss of human life, bodily injury, serious property damage or serious public impact (“Unintended Use”). U
