CRS01 - Schottky Barrier Rectifier

Toshiba Semiconductor

Datasheet Details

Part number	CRS01
Manufacturer	Toshiba Semiconductor
File Size	175.85 KB
Description	Schottky Barrier Rectifier
Datasheet	CRS01 Datasheet
Additional preview pages of the CRS01 datasheet.

📁 Similar Datasheet

CRS05 - Schottky Barrier Rectifier (Toshiba)
CRS0603A - High Power Anti-Surge Resistor (BOURNS)
CRS08 - SCHOTTKY BARRIER RECTIFIER (AiT Semiconductor)
CRS0805 - High Power Anti-Surge Chip Resistor (BOURNS)
CRS0805A - High Power Anti-Surge Resistor (BOURNS)
CRS09 - Schottky Barrier Rectifier (Toshiba)
CRS09 - Analogue Angular Rate Sensor (Silicon Sensing Systems)
CRS10I30A - Schottky Barrier Rectifier (Toshiba)
CRS10I30B - Schottky Barrier Rectifier (Toshiba)
CRS10I30C - Schottky Barrier Diode (Toshiba)

Other Datasheets by Toshiba Semiconductor

CRS02 - Schottky Barrier Type Schottky Barrier Rectifier
CRS03 - Schottky Barrier Rectifier
CRS04 - SCHOTTKY BARRIER RECTIFIERS
CRS06 - Schottky Barrier Rectifier
CRS08 - Schottky Barrier Rectifier

Full PDF Text Transcription

Click to expand full text

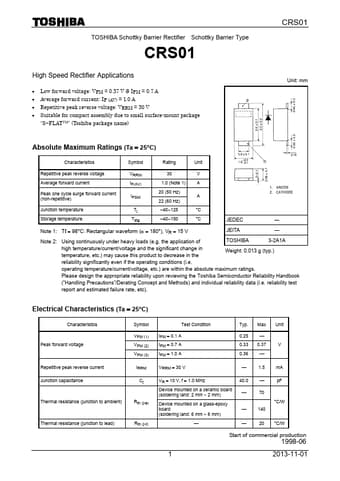

TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type CRS01 High Speed Rectifier Applications • Low forward voltage: VFM = 0.37 V @ IFM = 0.7 A • Average forward current: IF (AV) = 1.0 A • Repetitive peak reverse voltage: VRRM = 30 V • Suitable for compact assembly due to small surface-mount package “S−FLATTM” (Toshiba package name) CRS01 Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Repetitive peak reverse voltage Average forward current Peak one cycle surge forward current (non-repetitive) VRRM IF(AV) IFSM 30 1.
