CRS04 - SCHOTTKY BARRIER RECTIFIERS

Datasheet Summary

Features

ILITY.

Toshiba Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	CRS04
Manufacturer	Toshiba Semiconductor
File Size	177.74 KB
Description	SCHOTTKY BARRIER RECTIFIERS
Datasheet	CRS04 Datasheet
Additional preview pages of the CRS04 datasheet.

📁 Similar Datasheet

CRS05 - Schottky Barrier Rectifier (Toshiba)
CRS0603A - High Power Anti-Surge Resistor (BOURNS)
CRS08 - SCHOTTKY BARRIER RECTIFIER (AiT Semiconductor)
CRS0805 - High Power Anti-Surge Chip Resistor (BOURNS)
CRS0805A - High Power Anti-Surge Resistor (BOURNS)
CRS09 - Schottky Barrier Rectifier (Toshiba)
CRS09 - Analogue Angular Rate Sensor (Silicon Sensing Systems)
CRS10I30A - Schottky Barrier Rectifier (Toshiba)
CRS10I30B - Schottky Barrier Rectifier (Toshiba)
CRS10I30C - Schottky Barrier Diode (Toshiba)

Other Datasheets by Toshiba Semiconductor

CRS01 - Schottky Barrier Rectifier
CRS02 - Schottky Barrier Type Schottky Barrier Rectifier
CRS03 - Schottky Barrier Rectifier
CRS06 - Schottky Barrier Rectifier
CRS08 - Schottky Barrier Rectifier

Full PDF Text Transcription

Click to expand full text

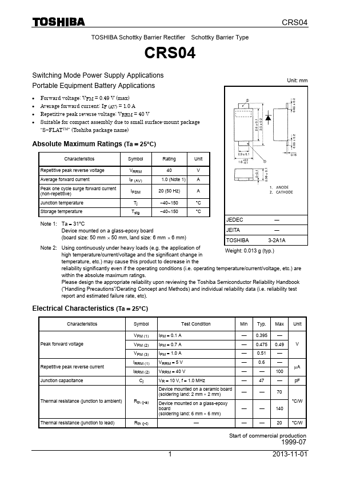

TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type CRS04 CRS04 Switching Mode Power Supply Applications Portable Equipment Battery Applications • Forward voltage: VFM = 0.49 V (max) • Average forward current: IF (AV) = 1.0 A • Repetitive peak reverse voltage: VRRM = 40 V • Suitable for compact assembly due to small surface-mount package “S−FLATTM” (Toshiba package name) Absolute Maximum Ratings (Ta = 25°C) Unit: mm Characteristics Symbol Rating Unit Repetitive peak reverse voltage VRRM 40 V Average forward current IF (AV) 1.
