CRS05 - Schottky Barrier Rectifier

Datasheet Summary

Features

  • right.

📥 Download Datasheet

Datasheet preview – CRS05

Datasheet Details

Part number CRS05
Manufacturer Toshiba
File Size 179.17 KB
Description Schottky Barrier Rectifier
Datasheet download datasheet CRS05 Datasheet
Additional preview pages of the CRS05 datasheet.

📁 Similar Datasheet

  • CRS01 - Schottky Barrier Rectifier (Toshiba Semiconductor)
  • CRS02 - Schottky Barrier Type Schottky Barrier Rectifier (Toshiba Semiconductor)
  • CRS03 - Schottky Barrier Rectifier (Toshiba Semiconductor)
  • CRS04 - SCHOTTKY BARRIER RECTIFIERS (Toshiba Semiconductor)
  • CRS06 - Schottky Barrier Rectifier (Toshiba Semiconductor)
  • CRS0603A - High Power Anti-Surge Resistor (BOURNS)
  • CRS08 - Schottky Barrier Rectifier (Toshiba Semiconductor)
  • CRS08 - SCHOTTKY BARRIER RECTIFIER (AiT Semiconductor)
  • CRS0805 - High Power Anti-Surge Chip Resistor (BOURNS)
  • CRS0805A - High Power Anti-Surge Resistor (BOURNS)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text

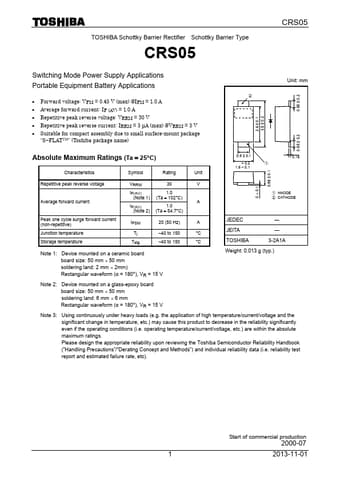

TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type CRS05 CRS05 Switching Mode Power Supply Applications Portable Equipment Battery Applications • Forward voltage: VFM = 0.45 V (max) @IFM = 1.0 A • Average forward current: IF (AV) = 1.0 A • Repetitive peak reverse voltage: VRRM = 30 V • Repetitive peak reverse current: IRRM = 5 μA (max) @VRRM = 5 V • Suitable for compact assembly due to small surface-mount package “S−FLATTM” (Toshiba package name) 2.6 ± 0.1 3.5 ± 0.2 Unit: mm ② 0.65 ± 0.2 0.65 ± 0.2 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit 0.9 ± 0.1 + 0.2 1.6 − 0.1 ① 0.16 0 ~ 0.1 0.98 ± 0.1 Repetitive peak reverse voltage Average forward current VRRM IF(AV) (Note 1) IF(AV) (Note 2) 30 1.0 (Ta = 102°C) 1.0 (Ta = 54.
