CRS03 - Schottky Barrier Rectifier

Toshiba Semiconductor

Datasheet Details

Part number	CRS03
Manufacturer	Toshiba Semiconductor
File Size	470.92 KB
Description	Schottky Barrier Rectifier
Datasheet	CRS03 Datasheet
Additional preview pages of the CRS03 datasheet.

📁 Similar Datasheet

CRS05 - Schottky Barrier Rectifier (Toshiba)
CRS0603A - High Power Anti-Surge Resistor (BOURNS)
CRS08 - SCHOTTKY BARRIER RECTIFIER (AiT Semiconductor)
CRS0805 - High Power Anti-Surge Chip Resistor (BOURNS)
CRS0805A - High Power Anti-Surge Resistor (BOURNS)
CRS09 - Schottky Barrier Rectifier (Toshiba)
CRS09 - Analogue Angular Rate Sensor (Silicon Sensing Systems)
CRS10I30A - Schottky Barrier Rectifier (Toshiba)
CRS10I30B - Schottky Barrier Rectifier (Toshiba)
CRS10I30C - Schottky Barrier Diode (Toshiba)

Other Datasheets by Toshiba Semiconductor

CRS01 - Schottky Barrier Rectifier
CRS02 - Schottky Barrier Type Schottky Barrier Rectifier
CRS04 - SCHOTTKY BARRIER RECTIFIERS
CRS06 - Schottky Barrier Rectifier
CRS08 - Schottky Barrier Rectifier

Full PDF Text Transcription

Click to expand full text

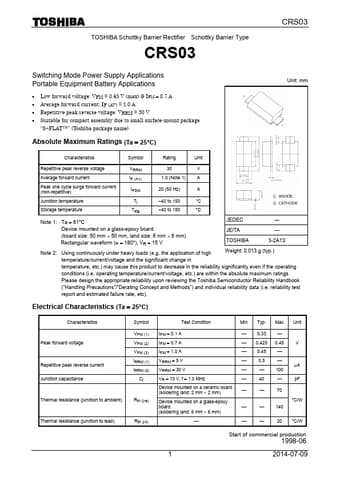

TOSHIBA Schottky Barrier Rectifier Schottky Barrier Type CRS03 CRS03 Switching Mode Power Supply Applications Portable Equipment Battery Applications • Low forward voltage: VFM = 0.45 V (max) @ IFM = 0.7 A • Average forward current: IF (AV) = 1.0 A • Repetitive peak reverse voltage: VRRM = 30 V • Suitable for compact assembly due to small surface-mount package “S−FLATTM” (Toshiba package name) Absolute Maximum Ratings (Ta = 25°C) Unit: mm Characteristics Symbol Rating Unit Repetitive peak reverse voltage VRRM 30 V Average forward current IF (AV) 1.
