DF2B7M3SL, ESD Protection Diodes

ESD Protection Diodes Silicon Epitaxial Planar DF2B7M3SL DF2B7M3SL 1.General The DF2B7M3SL is a TVS diode (ESD protection diode) protects semicondu.

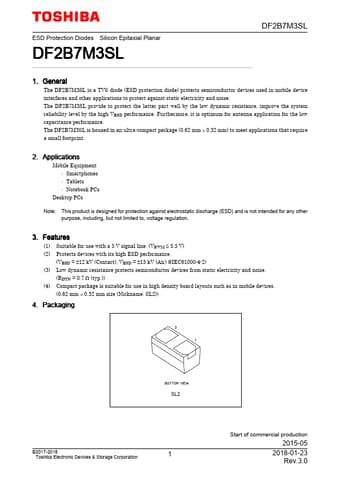

datasheet Preview Page 1 from Datasheet4u.com

DF2B7M3SL-ToshibaSemiconductor.pdf

DF2B7M3SL Datasheet Preview — Preview of DF2B7M3SL PDF

Datasheet Details

Part number:

DF2B7M3SL

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

323.83 KB

Description:

ESD Protection Diodes

Features

* (1) Suitable for use with a 5 V signal line. (VRWM ≤ 5.5 V) (2) Protects devices with its high ESD performance. (VESD = ±12 kV (Contact), VESD = ±15 kV (Air) @IEC61000-4-2) (3) Low dynamic resistance protects semiconductor devices from static electricity and noise. (RDYN = 0.7 Ω (typ. )) (4) Compact

Applications

* to protect against static electricity and noise. The DF2B7M3SL provide to protect the latter part well by the low dynamic resistance, improve the system reliability level by the high VESD performance. Furthermore, it is optimum for antenna application for the low capacitance performance. The DF2B7M3
