K3302 Datasheet - Toshiba Semiconductor

K3302, Silicon N-Channel MOSFET

2SK3302 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π-MOSV) 2SK3302 Switching Regulator and DC-DC Converter Applications Unit: mm <.

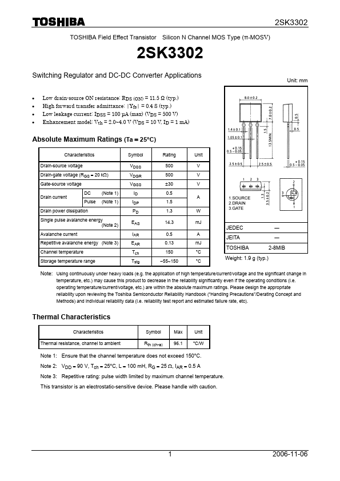

datasheet Preview Page 1 from Datasheet4u.com

K3302-ToshibaSemiconductor.pdf

K3302 Datasheet Preview — Preview of K3302 PDF

Datasheet Details

Part number:

K3302

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

184.94 KB

Description:

Silicon N-Channel MOSFET

Applications

* Unit: mm
* Low drain-source ON resistance: RDS (ON) = 11.5 Ω (typ. )
* High forward transfer admittance: |Yfs| = 0.4 S (typ. )
* Low leakage current: IDSS = 100 μA (max) (VDS = 500 V)
* Enhancement model: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratin
