MP4101 Datasheet - Toshiba Semiconductor

MP4101 High Power Switching Applications Hammer Drive / Pulse Motor Drive Inductive Load Switching

www.DataSheet.co.kr MP4101 TOSHIBA Power Transistor Module Silicon NPN Epitaxial Type (Four Darlington Power Transistors in One) MP4101 High Power Switching Applications Hammer Drive, Pulse Motor Drive Inductive Load Switching Small package by full molding (SIP 10 pins) High collector power dissipation (4-device operation) : PT = 4 W (Ta = 25°C) High collector current: IC (DC) = 4 A (max) High DC current gain: hFE = 2000 (min) (VCE = 2 V, IC = .

MP4101_ToshibaSemiconductor.pdf

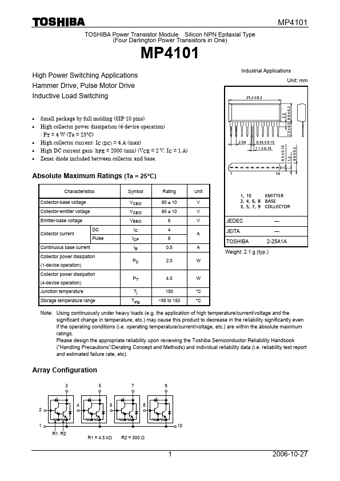

Preview of MP4101 PDF
MP4101 Datasheet Preview Page 2 MP4101 Datasheet Preview Page 3

Datasheet Details

Part number:

MP4101

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

206.35 KB

Description:

High power switching applications hammer drive / pulse motor drive inductive load switching.
