MP4013 Datasheet - Toshiba Semiconductor

MP4013 TOSHIBA Power Transistor Module

MP4013 TOSHIBA Power Transistor Module Silicon NPN Epitaxial Type (Four Darlington Power Transistors 4 in One) MP4013 High Power Switching Applications Hammer Drive, Pulse Motor Drive and Inductive Load Switching Industrial Applications Unit: mm Small package by full molding (SIP 10 pins) High collector power dissipation (4-device operation) : PT = 4 W (Ta = 25°C) High collector current: IC (DC) = 2 A (max) High DC current gain: hFE = 2000 (mi.

MP4013_ToshibaSemiconductor.pdf

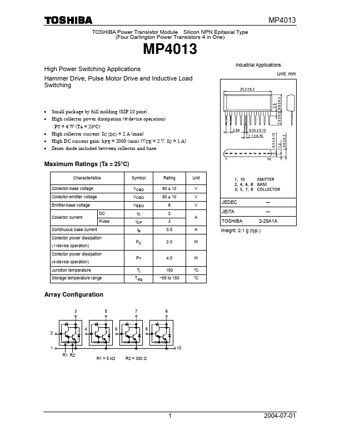

Preview of MP4013 PDF
MP4013 Datasheet Preview Page 2 MP4013 Datasheet Preview Page 3

Datasheet Details

Part number:

MP4013

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

153.94 KB

Description:

Toshiba power transistor module.
