MP4104 Datasheet - Toshiba Semiconductor

MP4104 High Power Switching Applications Hammer Drive / Pulse Motor Drive and Inductive Load Switching

www.DataSheet.co.kr MP4104 TOSHIBA Power Transistor Module Silicon NPN Epitaxial Type (Four Darlington Power Transistors in One) MP4104 High Power Switching Applications Hammer Drive, Pulse Motor Drive and Inductive Load Switching Industrial Applications Unit: mm Small package by full molding (SIP 10 pins) High collector power dissipation (4-device operation) : PT = 4 W (Ta = 25°C) High collector current: IC (DC) = 4 A (max) High DC current gain: hFE =.

MP4104_ToshibaSemiconductor.pdf

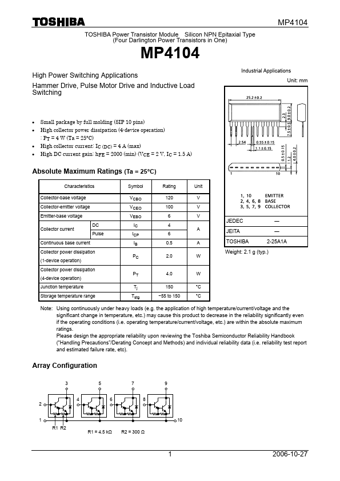

Preview of MP4104 PDF
MP4104 Datasheet Preview Page 2 MP4104 Datasheet Preview Page 3

Datasheet Details

Part number:

MP4104

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

204.45 KB

Description:

High power switching applications hammer drive / pulse motor drive and inductive load switching.
