SM12JZ47, SM12GZ47 Datasheet - Toshiba Semiconductor

SM12JZ47 (SM12xxZ47x) AC POWER CONTROL APPLICATIONS

SM12GZ47, SM12JZ47, SM12GZ47A, SM12JZ47A TOSHIBA BI DIRECTIONAL TRIODE THYRISTOR SILICON PLANAR TYPE SM12GZ47, SM12JZ47, SM12GZ47A, SM12JZ47A AC POWER CONTROL APPLICATIONS Repetitive Peak off State Voltage R.M.S On State Current High Commutating (dv / dt) Isolation Voltage : VIsol = 1500V AC : VDRM = 400V, 600V : IT (RMS) = 12A Unit: mm MAXIMUM RATINGS CHARACTERISTIC Repetitive Peak Off State Voltage and Repetitive Peak Reverse Voltage SM12GZ47 SM12GZ47A SM12JZ4.

SM12GZ47_ToshibaSemiconductor.pdf

This datasheet PDF includes multiple part numbers: SM12JZ47, SM12GZ47. Please refer to the document for exact specifications by model.

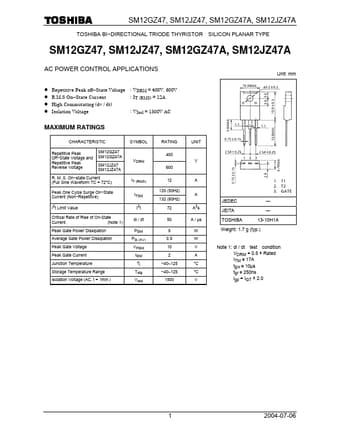

SM12JZ47 Datasheet Preview Page 2 SM12JZ47 Datasheet Preview Page 3

Datasheet Details

Part number:

SM12JZ47, SM12GZ47

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

322.80 KB

Description:

(sm12xxz47x) ac power control applications.

Note:

This datasheet PDF includes multiple part numbers: SM12JZ47, SM12GZ47.
Please refer to the document for exact specifications by model.
