TA1304F - (TA1304F/N) TV-SOUND PROCESSOR

Product Overview

Toshiba Semiconductor

Part number	TA1304F
Manufacturer	Toshiba Semiconductor
File Size	315.15 KB
Description	(TA1304F/N) TV-SOUND PROCESSOR
Datasheet	TA1304F Datasheet

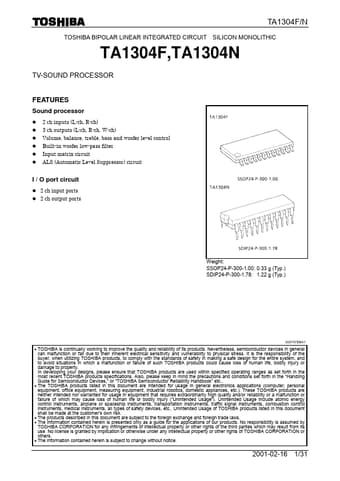

Additional preview pages of the TA1304F datasheet.

Sound processor l l l l l l 2 ch inputs (L-ch, R-ch) 3 ch outputs (L-ch, R-ch, W-ch) Volume, balance, treble, bass and woofer level control Built-in woofer low-pass filter Input matrix circuit ALS (Automatic Level Suppressor) circuit I / O port circuit l 2 ch input ports l 2 ch output ports Weight: SSOP24-P-300-1.00: 0.33 g (Typ. ) SDIP24-P-300-1.78: 1.22 g (Typ. ) 000707EBA1.
