TA76432FC Datasheet - Toshiba Semiconductor

TA76432FC 1.26V Adjustable High-Precision Shunt Regulators

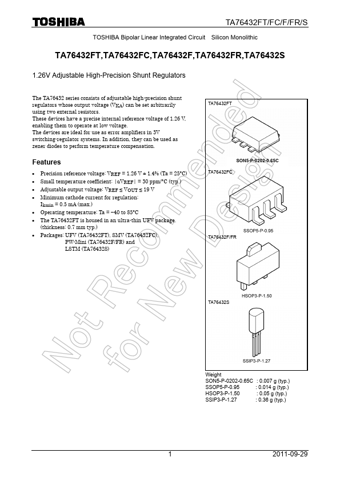

TA76432FT/FC/F/FR/S TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA76432FT,TA76432FC,TA76432F,TA76432FR,TA76432S 1.26V Adjustable High-Precision Shunt Regulators The TA76432 series consists of adjustable high-precision shunt regulators whose output voltage (VKA) can be set arbitrarily using two external resistors. These devices have a precise internal reference voltage of 1.26 V, enabling them to operate at low voltage. The devices are ideal for use as error amplifiers in 3V swi.

TA76432FC Features

* Precision reference voltage: VREF = 1.26 V ± 1.4% (Ta = 25°C)

* Small temperature coefficient: |αVREF| = 30 ppm/°C (typ.)

* Adjustable output voltage: VREF ≤ VOUT ≤ 19 V

* Minimum cathode current for regulation: Ikmin = 0.5 mA (max.)

* Operating temperature:
