TA76432AFT - 1.26V Adjustable High-Precision Shunt Regulators

TA76432AFT Description

TA76432AFT/AF/AFR/AS TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA76432AFT,TA76432AF,TA76432AFR,TA76432AS 1.26V Adjustable High-Prec.

TA76432AFT Features

* Precision reference voltage: VREF = 1.26 V ± 1% (Ta = 25°C)
* Small temperature coefficient: |αVREF| = 30 ppm/°C (typ. )
* Adjustable output voltage: VREF ≤ VOUT ≤ 19 V
* Minimum cathode current for regulation: Ikmin = 0.5 mA (max. )
* Operating temperature: T

📥 Download Datasheet

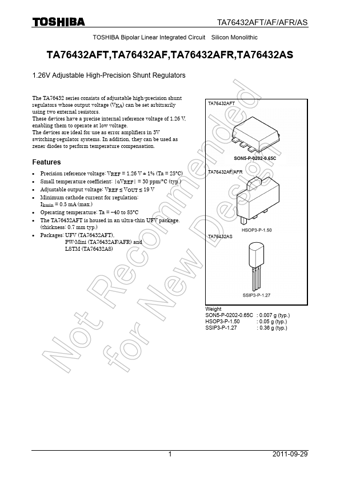

Preview of TA76432AFT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA76432AFT
Manufacturer
Toshiba ↗
File Size
303.25 KB
Datasheet
TA76432AFT-Toshiba.pdf
Description
1.26V Adjustable High-Precision Shunt Regulators
