TA76432AF 1.26V Adjustable High-Precision Shunt Regulators

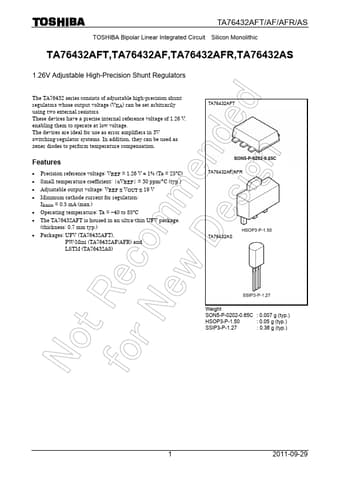

TA76432AFT/AF/AFR/AS TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA76432AFT,TA76432AF,TA76432AFR,TA76432AS 1.26V Adjustable High-Precision Shunt Regulators The TA76432 series consists of adjustable high-precision shunt regulators whose output voltage (VKA) can be set arbitrarily using two external resistors. These devices have a precise internal reference voltage of 1.26 V, enabling them to operate at low voltage. The devices are ideal for use as error amplifiers in 3V switchin.

TA76432AF Features

* Precision reference voltage: VREF = 1.26 V ± 1% (Ta = 25°C)

* Small temperature coefficient: |αVREF| = 30 ppm/°C (typ.)

* Adjustable output voltage: VREF ≤ VOUT ≤ 19 V

* Minimum cathode current for regulation: Ikmin = 0.5 mA (max.)

* Operating temperature: T

TA76432AFT-Toshiba.pdf

TA76432AF Datasheet Preview — This datasheet PDF includes multiple part numbers: TA76432AF, TA76432AFT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TA76432AF, TA76432AFT

Manufacturer:

Toshiba ↗

File Size:

303.25 KB

Description:

1.26v adjustable high-precision shunt regulators.

Note:

This datasheet PDF includes multiple part numbers: TA76432AF, TA76432AFT.
Please refer to the document for exact specifications by model.
