TA8123AF, TA8123 - 3V AV/FM 1CHIP TUNER

TA8123AF Description

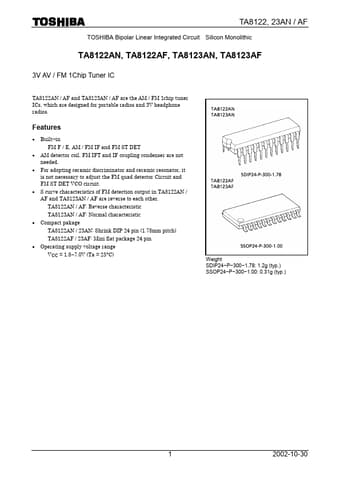

TA8122, 23AN / AF TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8122AN, TA8122AF, TA8123AN, TA8123AF 3V AV / FM 1Chip Tuner IC TA812.

TA8123AF Features

* Built
* in FM F / E, AM / FM IF and FM ST DET
* AM detector coil, FM IFT and IF coupling condenser are not needed.
* For adopting ceramic discriminator and ceramic resonator, it is not necessary to adjust the FM quad detector Circuit and FM ST DET VCO circuit.
* S curve chara

TA8123AF Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TA8123AF, TA8123. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA8123AF, TA8123
Manufacturer
Toshiba ↗ Semiconductor
File Size
1.28 MB
Datasheet
TA8123_ToshibaSemiconductor.pdf
Description
3V AV/FM 1CHIP TUNER
Note
This datasheet PDF includes multiple part numbers: TA8123AF, TA8123.
Please refer to the document for exact specifications by model.
