TA8123AN - 3V AV/FM 1CHIP TUNER

This page provides the datasheet information for the TA8123AN, a member of the TA8123 3V AV/FM 1CHIP TUNER family.

Datasheet Summary

Features

  • Built.
  • in FM F / E, AM / FM IF and FM ST DET.
  • AM detector coil, FM IFT and IF coupling condenser are not needed.
  • For adopting ceramic discriminator and ceramic resonator, it is not necessary to adjust the FM quad detector Circuit and FM ST DET VCO circuit.
  • S curve characteristics of FM detection output in TA8122AN / AF and TA8123AN / AF are reverse to each other. TA8122AN / AF: Reverse characteristic TA8123AN / AF: Normal characteristic.
  • Compact pakage TA8122AN.

📥 Download Datasheet

Datasheet preview – TA8123AN

Datasheet Details

Part number TA8123AN
Manufacturer Toshiba Semiconductor
File Size 1.28 MB
Description 3V AV/FM 1CHIP TUNER
Datasheet download datasheet TA8123AN Datasheet
Additional preview pages of the TA8123AN datasheet.

📁 Similar Datasheet

  • TA8124F - C-QUAM AM (Motorola)
  • TA8124P - C-QUAM AM (Motorola)
  • TA8127 - 3V AM / FM 1 CHIP TUNER IC (UTC)
  • TA8100F - 3V AM/FM IF IC (Toshiba)
  • TA8100N - 3V AM/FM IF IC (Toshiba)
  • TA8102P - Power Driver IC (Toshiba)
  • TA8106F - STEREO HEADPHONE POWER AMPLIFIER (1.5V USE) (Toshiba)
  • TA8108AF - (TA8108A / TA8109A) AM / FM IF System (Toshiba)
  • TA8108AP - (TA8108A / TA8109A) AM / FM IF System (Toshiba)
  • TA8109AF - (TA8108A / TA8109A) AM / FM IF System (Toshiba)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

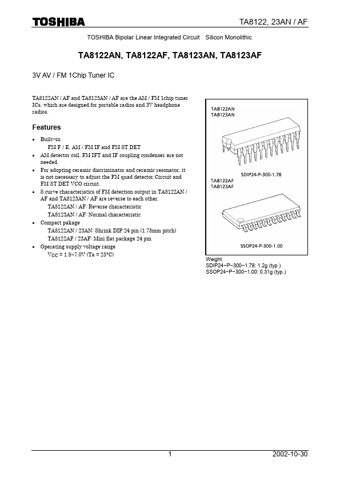

TA8122, 23AN / AF TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8122AN, TA8122AF, TA8123AN, TA8123AF 3V AV / FM 1Chip Tuner IC TA8122AN / AF and TA8123AN / AF are the AM / FM 1chip tuner ICs, which are designed for portable radios and 3V headphone radios. Features · Built−in FM F / E, AM / FM IF and FM ST DET · AM detector coil, FM IFT and IF coupling condenser are not needed. · For adopting ceramic discriminator and ceramic resonator, it is not necessary to adjust the FM quad detector Circuit and FM ST DET VCO circuit. · S curve characteristics of FM detection output in TA8122AN / AF and TA8123AN / AF are reverse to each other. TA8122AN / AF: Reverse characteristic TA8123AN / AF: Normal characteristic · Compact pakage TA8122AN / 23AN: Shrink DIP 24 pin (1.
