TA8127 - 3V AM / FM 1 CHIP TUNER IC

TA8127 Description

www.DataSheet4U.com UTC TA8127 LINEAR INTEGRATED CIRCUIT 3V AM / FM 1 CHIP TUNER IC .
The UTC TA8127 is the AM / FM 1 chip tuner IC, which is designed for Portable Radios and 3V Headphone Radios. Built-in FM F/E,.

TA8127 Features

* Built-in FM F/E, AM / FM IF and FM MPX
* AM Detector Coil and IF Coupling Condenser are not needed.
* Operating Supply Voltage Range Vcc=1.8~7.0V (Ta=25°C) SDIP-24
* Pb-free plating product number: TA8127L BLOCK DIAGRAM UTC UNISONIC TECHNOLOGIES CO. , LTD. 1 QW-R110-017,A UTC TA

📥 Download Datasheet

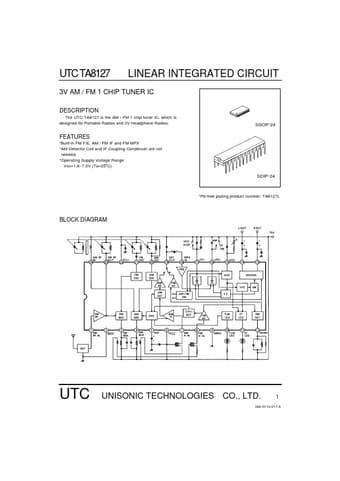

Preview of TA8127 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA8127
Manufacturer
UTC
File Size
170.60 KB
Datasheet
TA8127_UTC.pdf
Description
3V AM / FM 1 CHIP TUNER IC
