TA8127N, TA8127 - 3V AM/FM 1CHIP TUNER

TA8127N Description

TA8127N / F TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8127N,TA8127F 3V AM / FM 1chip Tuner IC TA8127N and TA8127F are the AM / FM.

TA8127N Features

* Built
* in FM F / E, AM / FM IF and FM MPX
* AM detector coil and IF coupling condenser are not needed.
* Compact package TA8127N: Shrink DIP 24 pin (1.78mm pitch) TA8127F: Mini flat packge 24 pin
* Operating supply voltage range VCC = 1.8~7.0V (Ta = 25°C) Weight SDIP24

TA8127N Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TA8127N, TA8127. Please refer to the document for exact specifications by model.

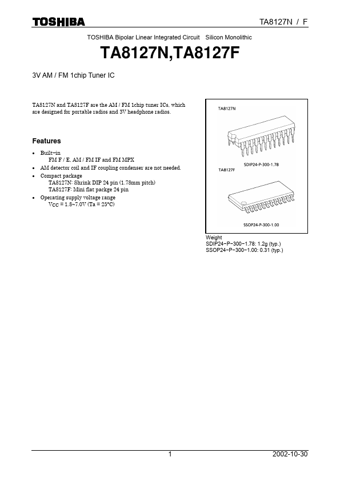

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA8127N, TA8127
Manufacturer
Toshiba ↗ Semiconductor
File Size
1.34 MB
Datasheet
TA8127_ToshibaSemiconductor.pdf
Description
3V AM/FM 1CHIP TUNER
Note
This datasheet PDF includes multiple part numbers: TA8127N, TA8127.
Please refer to the document for exact specifications by model.
