TA8106F - STEREO HEADPHONE POWER AMPLIFIER (1.5V USE)

TA8106F Description

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8106F Stereo Headphone Power Amplifier (1.5V USE) The TA8106F is a dual headphone ampl.

TA8106F Features

* Condenser
* less for input and output.
* Condenser
* less for bootstrap.
* Built
* in the muting function.
* High power output capability according to adopting the matrix drive method. Po (1) = 14mW / ch (typ. ) at Vin (R) = Vin (L) mode Po (2) = 5.5mW / ch (typ. )

TA8106F Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m

📥 Download Datasheet

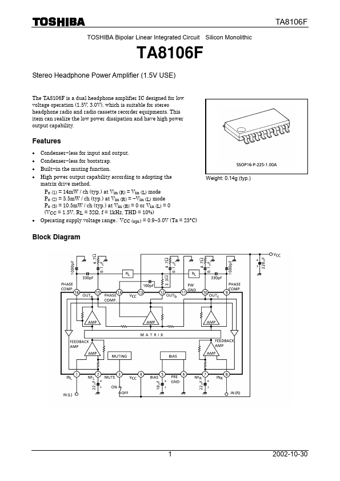

Preview of TA8106F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA8106F
Manufacturer
Toshiba ↗
File Size
776.78 KB
Datasheet
TA8106F_Toshiba.pdf
Description
STEREO HEADPHONE POWER AMPLIFIER (1.5V USE)
