TA8161F

DC/DC CONVERTER SYSTEM IC FOR POWER SUPPLY

TA8161F Features

* Output voltage can be switched over to 2.5V or 5V VO = 2.5V mode (by one dry

* battery) VO = 5V mode (by one or two dry

* batteries)

* Built

* in backup mode with a very low power dissipation VCC = 1.2V, Ta = 25°C, IO = 0 ICC1 = 50µA (typ.) VO = 5V mode ICC2 = 30µA (typ.)

TA8161F Datasheet (630.25 KB)

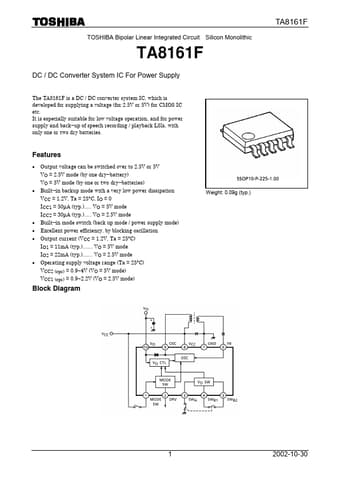

Preview of TA8161F PDF

Datasheet Details

Part number:

TA8161F

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

630.25 KB

Description:

Dc/dc converter system ic for power supply.
TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8161F DC / DC Converter System IC For Power Supply The TA8161F is a DC / DC converter .
