TA8167N

3V AM/FM 1CHP TUNER

TA8167N Features

* Built

* in FM F / E, AM / FM IF and FM MPX

* AM detector coil and IF coupling condenser are not needed.

* S curve characteristics of FM detection output is reverse characteristic.

* The FM local oscillation voltage is set up low relatively for measures against FM radiation.

TA8167N Datasheet (1.26 MB)

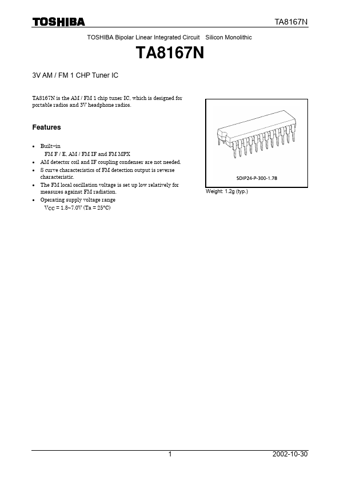

Preview of TA8167N PDF

Datasheet Details

Part number:

TA8167N

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

1.26 MB

Description:

3v am/fm 1chp tuner.
TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA8167N 3V AM / FM 1 CHP Tuner IC TA8167N is the AM / FM 1 chip tuner IC, which is desig.
