TC74ACT138FT

3-to-8 Line Decoder

TC74ACT138FT Features

* High speed: tpd = 6.0 ns (typ.) at VCC = 5 V

* Low power dissipation: ICC = 8 μA (max) at Ta = 25°C

* Compatible with TTL outputs: VIL = 0.8 V (max) VIH = 2.0 V (min)

* Symmetrical output impedance: |IOH| = IOL = 24 mA (min) Capability of driving 50 Ω transmission l

TC74ACT138FT Datasheet (254.97 KB)

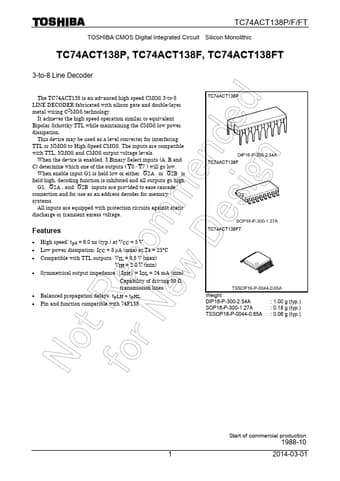

Preview of TC74ACT138FT PDF

Datasheet Details

Part number:

TC74ACT138FT

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

254.97 KB

Description:

3-to-8 line decoder.
TC74ACT138P/F/FT TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC74ACT138P, TC74ACT138F, TC74ACT138FT 3-to-8 Line Decoder The TC74ACT138.
