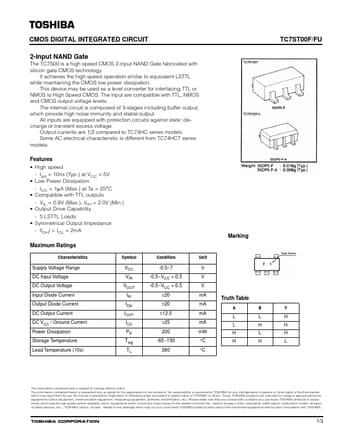

TC7ST00F Datasheet, Gate, Toshiba Semiconductor

TC7ST00F Features

• Gate
• High speed - tpd = 10ns (Typ.) at VCC = 5V
• Low Power Dissipation - ICC = 1µA (Max.) at Ta = 25°C
• Compatible with TTL outputs - VIL = 0.8V (Max.), VIH = 2.0

PDF File Details

Part number:

TC7ST00F

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

169.07kb

Download:

📄 Datasheet

Description:

2-input nand gate.
