TC7ST02F 2-input NOR GATE

w w w . D a t a S h e e t . c o . k r TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT 2-Input NOR Gate The TC7S02 is a high speed CMOS 2-input NOR Gate fabricated with silicon gate CMOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. This device may be used as a level converter for interfacing TTL or NMOS to High Speed CMOS. The input are compatible with TTL, NMOS and CMOS output voltage levels. The interna.

TC7ST02F Features

* High speed - tpd = 10ns (Typ.) at VCC = 5V

* Low Power Dissipation - ICC = 1µA (Max.) at Ta = 25°C

* Compatible with TTL outputs - VIL = 0.8V (Max.), VIH = 2.0V (Min.)

* Output Drive Capability - 5 LSTTL Loads

* Symmetrical Output Impedance - |IOH| = IOL = 2

TC7ST02F Datasheet (168.93 KB)

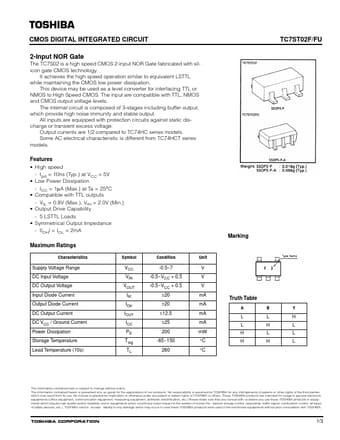

TC7ST02F Datasheet Preview — Preview of TC7ST02F PDF

Datasheet Details

Part number:

TC7ST02F

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

168.93 KB

Description:

2-input nor gate.
