TC7ST08F 2-input And Gate

w w w . D a t a S h e e t . c o . k r TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT 2-Input AND Gate The TC7S08 is a high speed CMOS 2-Input AND Gate fabricated with silicon gate CMOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. This device may be used as a level converter for interfacing TTL or NMOS to High Speed CMOS. The input are compatible with TTL, NMOS and CMOS output voltage levels. The interna.

TC7ST08F Features

* High speed - tpd = 15ns (Typ.) at VCC = 5V

* Low Power Dissipation - ICC = 1µA (Max.) at Ta = 25°C

* Compatible with TTL outputs - VIL = 0.8V (Max.), VIH = 2.0V (Min.)

* Output Drive Capability - 5 LSTTL Loads

* Symmetrical Output Impedance - |IOH| = IOL = 2

TC7ST08F Datasheet (167.19 KB)

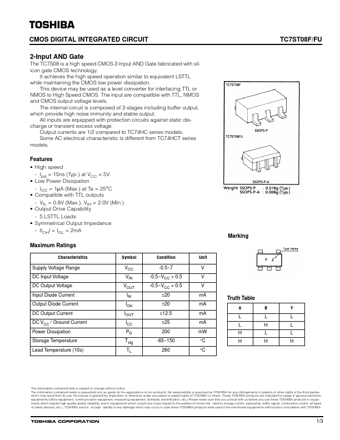

TC7ST08F Datasheet Preview — Preview of TC7ST08F PDF

Datasheet Details

Part number:

TC7ST08F

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

167.19 KB

Description:

2-input and gate.
