TC7ST08FU, TC7ST08F, 2-input And Gate

w w w .D a t a S h e e t .c o .k r TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT 2-Input AND Gate The TC7S08 is a high speed CMOS 2-In.

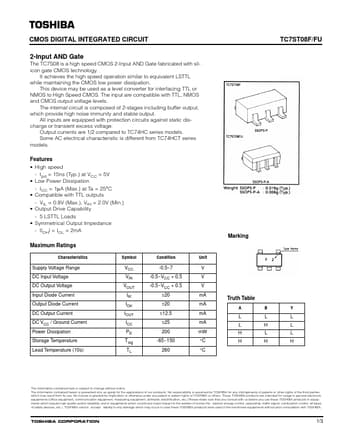

datasheet Preview Page 1 from Datasheet4u.com

TC7ST08F_ToshibaSemiconductor.pdf

TC7ST08FU Datasheet Preview — This datasheet PDF includes multiple part numbers: TC7ST08FU, TC7ST08F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TC7ST08FU, TC7ST08F

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

167.19 KB

Description:

2-input And Gate

Note:

This datasheet PDF includes multiple part numbers: TC7ST08FU, TC7ST08F.
Please refer to the document for exact specifications by model.

Features

* High speed - tpd = 15ns (Typ. ) at VCC = 5V
* Low Power Dissipation - ICC = 1µA (Max. ) at Ta = 25°C
* Compatible with TTL outputs - VIL = 0.8V (Max. ), VIH = 2.0V (Min. )
* Output Drive Capability - 5 LSTTL Loads
* Symmetrical Output Impedance - |IOH| = IOL = 2

Applications

* of our products. No responsibility is assumed by TOSHIBA for any infringements of patents or other rights of the third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of TOSHIBA or others. These TOSHIBA products are intended
