TC7ST04F Inverter

w w w . D a t a S h e e t . c o . k r TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT Inverter The TC7S04 is a high speed CMOS Inverter fabricated with silicon gate CMOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. This device may be used as a level converter for interfacing TTL or NMOS to High Speed CMOS. The input are compatible with TTL, NMOS and CMOS output voltage levels. The internal circuit is com.

TC7ST04F Features

* High speed - tpd = 10ns (Typ.) at VCC = 5V

* Low Power Dissipation - ICC = 1µA (Max.) at Ta = 25°C

* Compatible with TTL outputs - VIL = 0.8V (Max.), VIH = 2.0V (Min.)

* Output Drive Capability - 5 LSTTL Loads

* Symmetrical Output Impedance - |IOH| = IOL = 2

TC7ST04F Datasheet (166.73 KB)

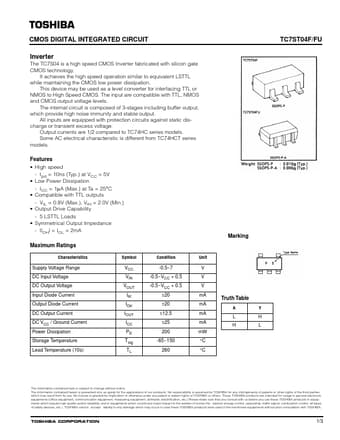

TC7ST04F Datasheet Preview — Preview of TC7ST04F PDF

Datasheet Details

Part number:

TC7ST04F

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

166.73 KB

Description:

Inverter.
