TK16E60W Datasheet - Toshiba Semiconductor

TK16E60W, Silicon N-Channel MOSFET

MOSFETs Silicon N-Channel MOS (DTMOS) TK16E60W 1.Applications * Switching Voltage Regulators 2..

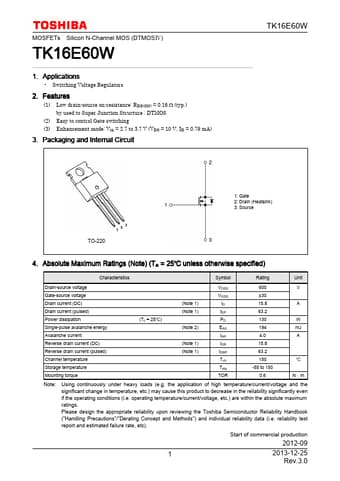

datasheet Preview Page 1 from Datasheet4u.com

TK16E60W-ToshibaSemiconductor.pdf

TK16E60W Datasheet Preview — Preview of TK16E60W PDF

Datasheet Details

Part number:

TK16E60W

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

251.50 KB

Description:

Silicon N-Channel MOSFET

Features

* (1) Low drain-source on-resistance: RDS(ON) = 0.16 Ω (typ. ) by used to Super Junction Structure : DTMOS (2) Easy to control Gate switching (3) Enhancement mode: Vth = 2.7 to 3.7 V (VDS = 10 V, ID = 0.79 mA) 3. Packaging and Internal Circuit TK16E60W 1: Gate 2: Drain (Heatsink) 3: Source TO-220 4
