2SA2154 Datasheet - Toshiba

2SA2154 Silicon PNP Transistor

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA2154 2SA2154 General-Purpose Amplifier Applications High voltage and high current : VCEO = 50 V, IC = 100 mA (max) Excellent hFE linearity : hFE (IC = 0.1 mA)/hFE (IC = 2 mA) = 0.95 (typ.) High hFE : hFE = 120~400 Complementary to 2SC6026 Absolute Maximum Ratings (Ta = 25°C) 0.6±0.05 0.35±0.05 0.15±0.05 Unit: mm 0.2±0.05 1 3 2 0.8±0.05 1.0±0.05 0.1±0.

2SA2154 Datasheet (140.11 KB)

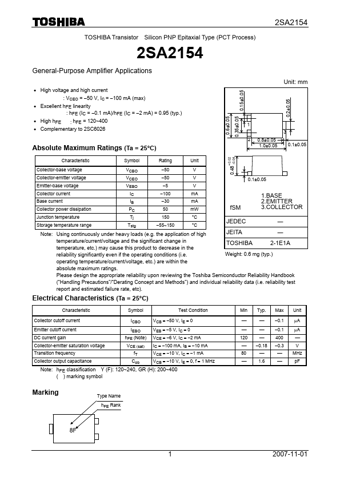

Preview of 2SA2154 PDF
2SA2154 Datasheet Preview Page 2 2SA2154 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA2154

Manufacturer:

Toshiba ↗

File Size:

140.11 KB

Description:

Silicon pnp transistor.
