2SA2154CT - Silicon PNP Transistor

2SA2154CT Description

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA2154CT 2SA2154CT General Purpose Amplifier Applications * High voltage and high c.

2SA2154CT Applications

* High voltage and high current : VCEO = 50V, IC = 100mA (max)
* Excellent hFE linearity : hFE (IC = 0.1 mA) / hFE (IC = 2 mA)= 0.95 (typ. )
* High hFE : hFE = 120 to 400
* Complementary to 2SC6026CT Absolute Maximum Ratings (Ta = 25°C) Unit: mm Characteristics Symbol Rating

📥 Download Datasheet

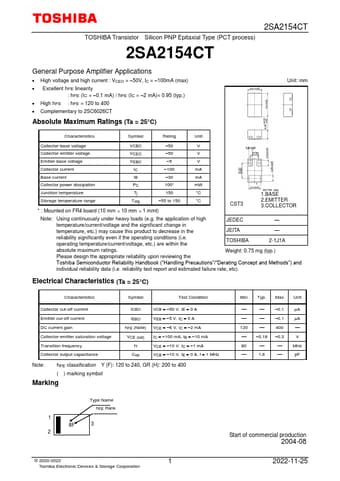

Preview of 2SA2154CT PDF
datasheet Preview Page 2 datasheet Preview Page 3
