2SA2154MFV Datasheet - Toshiba

2SA2154MFV Silicon PNP Transistor

2SA2154MFV TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) 2SA2154MFV General-Purpose Amplifier Applications High voltage and high current : VCEO = 50 V, IC = 150 mA (max) Excellent hFE linearity : hFE (IC = 0.1 mA)/hFE (IC = 2 mA) = 0.95 (typ.) High hFE : hFE = 120 to 400 Complementary to 2SC6026MFV Absolute Maximum Ratings (Ta = 25°C) 1.2 ± 0.05 0.8 ± 0.05 0.4 0.4 0.22 ± 0.05 Unit: mm 1.2 ± 0.05 0.80 ±.

2SA2154MFV_Toshiba.pdf

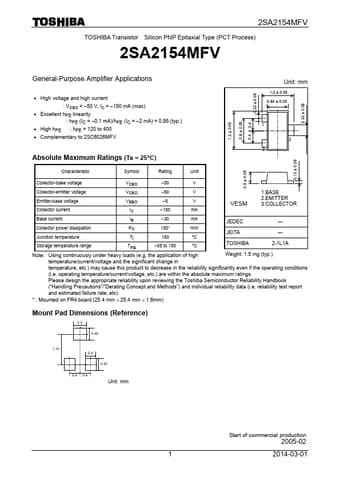

Preview of 2SA2154MFV PDF
2SA2154MFV Datasheet Preview Page 2 2SA2154MFV Datasheet Preview Page 3

Datasheet Details

Part number:

2SA2154MFV

Manufacturer:

Toshiba ↗

File Size:

165.72 KB

Description:

Silicon pnp transistor.
