2SD648A - Silicon NPN Transistor

2SD648A Description

SILICON NPN TRIPLE DIFFUSED MESA TYPE (DARLINGTON POWER) HIGH POWER SWITCHING APPLICATIONS.DC MOTOR CONTROL APPLICATIONS.ELECTRIC CAR APPLICATIONS..

2SD648A Features

* . High Voltage : VCEO ( SUS )=300V . Triple Diffused Design. . Darlington Design . MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL RATING Collector-Base Voltage VCBO 300 Collector-Emitter Voltage ^CEO(SUS) 300 Emitter-Base Voltage VEBO Collector Current ic 400 Emitter Current IE -400

📥 Download Datasheet

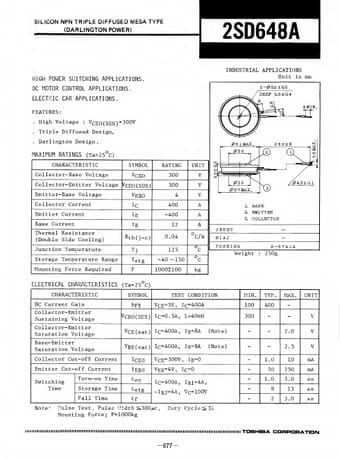

Preview of 2SD648A PDF
datasheet Preview Page 2 datasheet Preview Page 3
