74HC04D Datasheet, Inverter, Toshiba

74HC04D Features

  • Inverter (1) High speed: tpd = 6 ns (typ.) at VCC = 5 V (2) Low power dissipation: ICC = 1.0 µA (max) at Ta = 25  (3) Balanced propagation delays: tPLH ≈ tPHL (4) Wide operating voltage range:

PDF File Details

Part number:

74HC04D

Manufacturer:

Toshiba ↗

File Size:

168.32kb

Download:

📄 Datasheet

Description:

Hex inverter.

  • Hex Inverter 2. General The 74HC04D is a high speed CMOS INVERTER fabricated with silicon gate C2MOS technology. It achieve

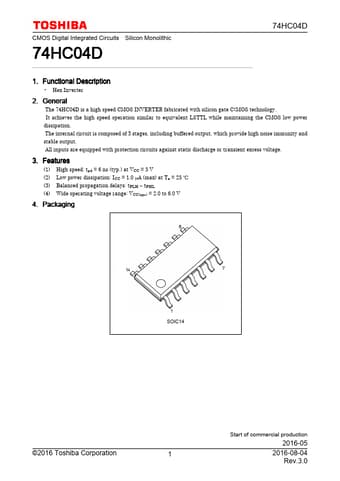

  • Datasheet Preview: 74HC04D 📥 Download PDF (168.32kb)
