74HC04D-Q100 - Hex inverter

Product Overview

nexperia

📥 Download Datasheet

74HC04D-Q100 Hex inverter by nexperia - Datasheet Preview — Datasheet preview – 74HC04D-Q100

Datasheet Details

Part number	74HC04D-Q100
Manufacturer	nexperia
File Size	242.14 KB
Description	Hex inverter
Datasheet	74HC04D-Q100 Datasheet
Note	This datasheet PDF includes multiple part numbers: 74HC04D-Q100, 74HC04-Q100. Please refer to the document for exact specifications by model.

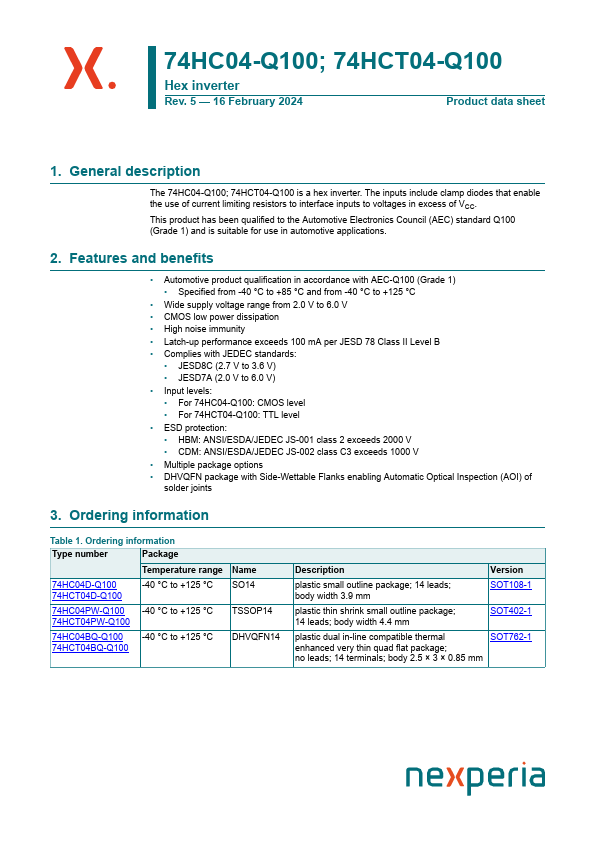

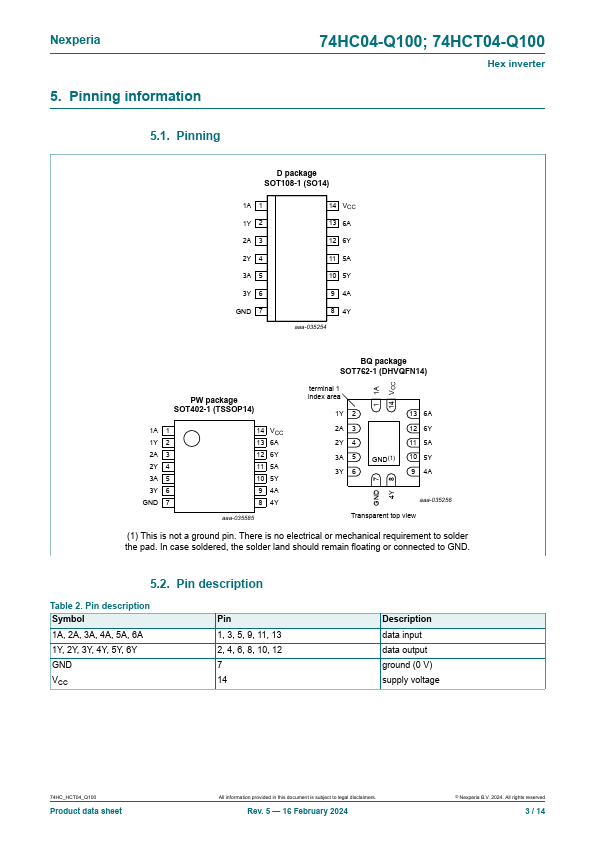

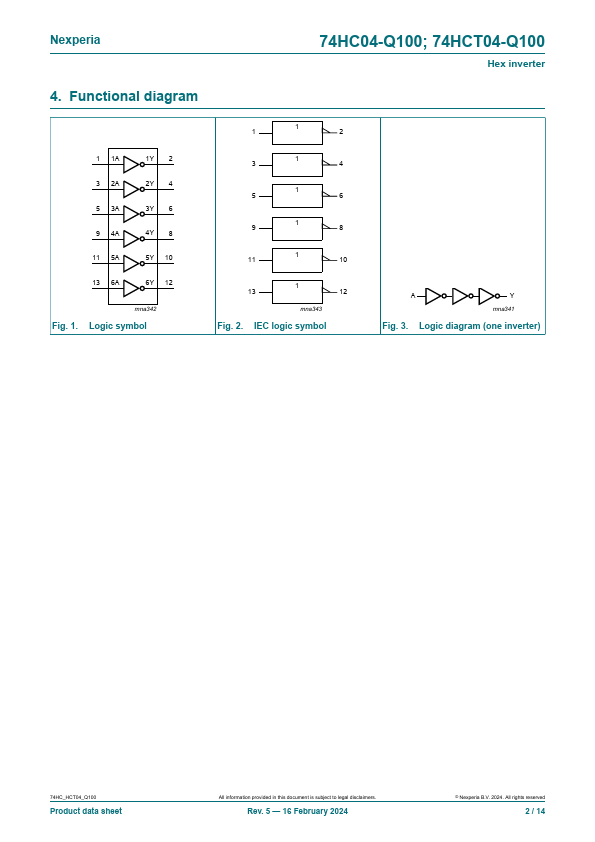

Additional preview pages of the 74HC04D-Q100 datasheet.

Product details

Description

The 74HC04-Q100; 74HCT04-Q100 is a hex inverter.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
Input levels:.
For 74HC0.
